Understanding Hydraulic Load Cells: Principles and Applications

Load measurement is a crucial aspect of various industries, from manufacturing and construction to transportation and aerospace. Hydraulic load cells are a class of devices used to accurately measure forces and loads by utilizing the principles of fluid mechanics and pressure transmission. In this article, we will delve into the in-depth workings of hydraulic load cells, their mechanisms, applications, advantages, and limitations.

---

Principle of Operation

At its core, a hydraulic load cell employs Pascal's law, which states that when pressure is applied to a confined fluid, that pressure is transmitted undiminished in all directions. This fundamental principle serves as the basis for the functioning of hydraulic load cells. The load applied to the load cell generates a force that is converted into hydraulic pressure within the fluid-filled system.

A hydraulic load cell typically consists of the following components:

• Load Piston: This is the part of the load cell that directly experiences the applied force. The load piston is often connected to the structure or equipment whose load needs to be measured.

• Fluid-Filled Chamber: The load piston is situated within a sealed chamber filled with hydraulic fluid (usually oil). As the load is applied to the load piston, it generates pressure within the fluid.

• Pressure Transducer: The pressure generated in the fluid is measured by a pressure transducer, which converts the hydraulic pressure into an electrical signal that can be further processed and interpreted.

• Output Circuitry: The electrical signal from the pressure transducer is sent to output circuitry, where it can be conditioned, amplified, and converted into a readable format (such as voltage, current, or digital signals).


Working Steps

• Load Application: When an external force or load is applied to the load piston, it causes the piston to move and pressurizes the hydraulic fluid in the chamber.

• Pressure Transmission: According to Pascal's law, the pressure generated by the load is transmitted undiminished throughout the hydraulic fluid.

• Pressure Measurement: The pressure transducer senses the hydraulic pressure and converts it into an electrical signal. This signal is proportional to the applied load.

• Signal Processing: The electrical signal is then processed and conditioned by the output circuitry. This step may involve amplification, calibration, and conversion to a suitable output format.

• Load Display/Recording: The processed signal can be displayed on a readout or further recorded for analysis, data logging, or automation purposes.

Applications

Hydraulic load cells find applications in various industries due to their accuracy, robustness, and versatility. Some common applications include:

• Weighing Systems: Hydraulic load cells are used in weighing scales for industrial and commercial purposes. They are capable of handling heavy loads while providing accurate weight measurements.

• Material Testing: In the field of materials science and engineering, hydraulic load cells are used to determine mechanical properties like tensile strength, compression strength, and elasticity.

• Construction and Structural Testing: Hydraulic load cells are employed to monitor and test the load-bearing capacity of structures such as bridges, buildings, and dams.

• Aerospace and Aviation: These load cells play a crucial role in testing and certifying the structural integrity of aircraft components, ensuring safety in flight.

• Automotive Industry: Hydraulic load cells are used in automotive testing to evaluate the durability and performance of vehicle parts under different loading conditions.


Advantages and Limitations

Advantages:

• High Accuracy: Hydraulic load cells offer high accuracy and precision in load measurement, making them suitable for applications where precise measurements are crucial.

• Robustness: They are known for their durability and ability to handle heavy loads, often in rugged environments.

• Low Sensitivity to Environmental Factors: Hydraulic load cells are less sensitive to temperature fluctuations and electromagnetic interference compared to some other load measurement technologies.

Limitations:

• Fluid Leakage: Over time, hydraulic load cells might experience fluid leakage, which can affect accuracy and performance. Regular maintenance is essential to mitigate this issue.

• Complex Installation: Installing hydraulic load cells can be more complex compared to other load measurement methods due to the need for hydraulic fluid management.

• Temperature Effects: While less sensitive to temperature than some other technologies, hydraulic load cells can still be influenced by temperature changes, which might require compensation mechanisms.

Conclusion

Hydraulic load cells are a vital tool in the realm of load measurement, offering accurate and reliable data across various industries. Their reliance on Pascal's law and fluid mechanics provides a robust foundation for accurate load measurement, enabling applications ranging from material testing to aerospace engineering. Despite certain limitations, their advantages in terms of accuracy, durability, and versatility make them an indispensable asset in modern technology and industry.

American Scale is your source for industrial scales. Be sure to check out our Learning Hub for in depth articles tackling multiple topics. From scale service and maintenance, to learning how to pick the right scale for you. American Scale has you covered.

Hydraulic Load Cells: The Precision Powerhouses of Weight Measurement

Hydraulic load cells are ingenious devices that offer exceptional accuracy, reliability, and durability. By utilizing the principles of fluid mechanics and advanced engineering, hydraulic load cells excel in providing precise weight readings across various industries and applications. In this comprehensive article, we will explore the working principles, applications, advantages, and considerations associated with hydraulic load cells, shedding light on their significance in the realm of precision weighing.

---

Understanding Hydraulic Load Cells

Hydraulic load cells are force transducers that convert an applied force into a change in hydraulic pressure, enabling accurate weight measurement. These devices are designed to handle heavy loads and operate on the principle of Pascal's law, which states that pressure exerted on a confined fluid is transmitted undiminished in all directions.

Working Mechanism:

Construction: Hydraulic load cells consist of a fluid-filled chamber with a piston or diaphragm. When a load is applied, the force is transmitted to the fluid, causing a displacement of the piston or diaphragm.

Pressure Conversion: As the piston or diaphragm moves, it compresses the fluid within the chamber, resulting in a change in hydraulic pressure. This change in pressure is directly proportional to the applied force.

Pressure Measurement: The change in hydraulic pressure is measured using a pressure gauge or a transducer. The pressure measurement is converted into an electrical signal, which can be further processed, displayed, or recorded for weight determination.

Calibration: Prior to use, hydraulic load cells undergo calibration to establish their accuracy. Calibration involves applying known forces to the load cell and adjusting it to match the expected readings. This process ensures precise and reliable weight measurements.

---

Applications of Hydraulic Load Cells:

Industrial Weighing: Hydraulic load cells are widely used in industrial settings, including manufacturing, construction, and transportation. They can accurately weigh heavy objects, materials, and equipment, ensuring compliance with weight regulations and enabling efficient operations.

Testing and Research: Hydraulic load cells play a crucial role in various testing and research applications. They are employed in material testing, structural analysis, and load monitoring, enabling scientists and engineers to measure forces with high precision and accuracy.

Aerospace and Defense: Hydraulic load cells are utilized in aerospace and defense industries for applications such as aircraft weighing, missile testing, and calibration of load-bearing components. Their reliability and accuracy make them indispensable in critical situations.

Marine and Offshore: In marine and offshore industries, hydraulic load cells are employed for load monitoring on ships, cranes, and offshore structures. They ensure safe and efficient operations by precisely measuring loads and preventing overloading.

---

Advantages of Hydraulic Load Cells:

High Accuracy: Hydraulic load cells offer exceptional accuracy, often providing measurements with high precision. This makes them suitable for applications that require precise weight determination, such as quality control and research experiments.

Wide Load Range: Hydraulic load cells can handle a wide range of loads, from a few kilograms to several tons. Their versatility allows for the weighing of various objects and materials, accommodating diverse industrial needs.

Durability and Reliability: Hydraulic load cells are known for their robust construction and resistance to harsh environmental conditions. They are designed to withstand heavy usage, shocks, vibrations, and temperature fluctuations, ensuring long-term reliability.

Overload Protection: Hydraulic load cells incorporate overload protection mechanisms, safeguarding them from damage caused by excessive forces. This feature enhances their lifespan and protects them from potential operational risks.

---

Limitations and Considerations:

Maintenance: Hydraulic load cells require periodic maintenance to ensure optimal performance. Regular inspection, cleaning, and calibration are necessary to maintain accuracy and address any potential issues promptly.

Installation and Setup: Proper installation and setup of hydraulic load cells are critical to their accurate operation. Precise alignment, secure mounting, and appropriate fluid filling are crucial steps to achieve reliable weight measurements.

Cost: Hydraulic load cells can be relatively expensive compared to other weighing technologies. However, their accuracy, durability, and long-term reliability often justify the investment, especially for applications that demand precise weight measurements.

Conclusion:

Hydraulic load cells have transformed weight measurement with their remarkable accuracy, reliability, and versatility. By harnessing the principles of fluid mechanics, these precision instruments excel in industrial weighing, testing, and research applications. Their ability to handle heavy loads, coupled with their durability and high accuracy, positions hydraulic load cells as indispensable tools across diverse industries. As technology advances, hydraulic load cells continue to push the boundaries of precision weighing, contributing to enhanced quality control, safety, and efficiency in numerous sectors.

Hydraulic Load Cells: How Do They Work?

Understanding Hydraulic Load Cells.

When it comes to load cells, there are a few different options you can select from and they each have different methods of sensing the load. Hydraulic load cells are sensors that are used to measure force or weight. They are commonly used in a variety of applications, including industrial processes, quality control, and testing. Hydraulic load cells work by using the principles of hydraulics to translate a force or weight into a measurable pressure.

---

How Hydraulic Load Cells Work

1. A load cell consists of a cylinder filled with a liquid, typically oil, and a piston inside the cylinder. The piston is connected to a transducer, which is a device that converts physical motion or pressure into an electrical signal.

2. When a force is applied to the load cell, it pushes down on the piston, which in turn increases the pressure of the oil in the cylinder. This increased pressure is transmitted through the oil to the transducer.

3. The transducer converts the pressure of the oil into an electrical signal, which is then sent to a display or controller. The strength of the electrical signal is proportional to the force or weight being applied to the load cell.

4. The display or controller then translates the electrical signal into a numerical value, which is displayed as the weight or force being measured by the load cell.

Hydraulic load cells are highly accurate and reliable, and they are capable of measuring a wide range of forces and weights. They are also relatively easy to install and maintain, making them a popular choice for many applications.

There are several types of hydraulic load cells, including single-ended, double-ended, and cantilever designs. Each type has its own set of advantages and disadvantages, and the choice of which type to use depends on the specific application and the requirements of the system.

Closing Words

In summary, hydraulic load cells work by using the principles of hydraulics to translate a force or weight into a measurable pressure, which is then converted into an electrical signal and displayed as a numerical value. They are accurate, reliable, and widely used in a variety of applications.

At American Scale we strive to bring you informed and useful content on all things scale related. Be sure to check out our legal for trade truck scale system articles about truck scale foundation or how much do truck scales cost. We even have a guide to warranties. We also have articles on scale accessories, common problems to prolong your scales lifespan, weighing applications as well as what scale indicator works best with your junction box. To learn more about bench scales, it would be good to check out our other articles such as “Bench Scale Basics'' and “How Much Does A Bench Scale Cost?”. These articles will help with the basics of bench scale ownership.

10 Reasons To Get A Hydrostatic Scale

10 Reasons To Get A Hydrostatic Scale

The Advantages of Hydrostatic.

Scales are as essential to our lives more than we realize. If it is sold then at some point in the production process then it was weighed. When coming to accuracy of weighing, there are several options that are considered. Analog and electronic load cells seem to be the main options, but the one not mentioned as much is hydrostatic scales. This post will go over the 10 reasons why hydrostatic scales should be considered.

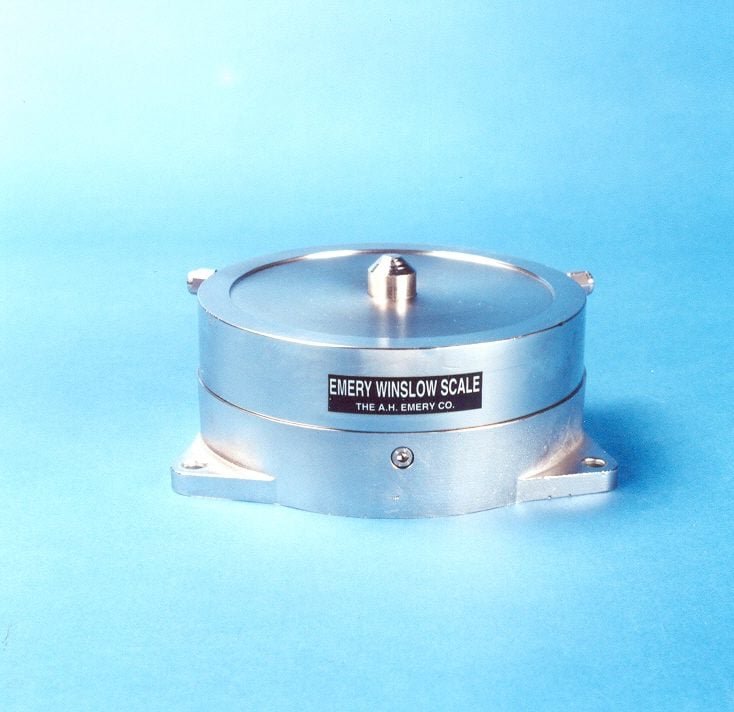

What is a hydrostatic load cell?

The Hydrostatic load cell is basically a simple mechanical mechanism which functions according to known Laws of Physics. It consists of a piston, a base, a cylinder and a diaphragm. A thin film of fluid is sandwiched between the base and the diaphragm. The piston presses against the diaphragm. The result is only a small amount of fluid is required (less than one (1) pint of fluid used in a 70 foot truck scale). Each Hydrostatic load cell type is designed with an exact "acting area" - a known value in units of square inches. For example, when a known weight is applied to a Hydrostatic load cell with a known "acting area", the output in PSI is predictable. A 50,000lb weight applied to an "acting area" of 50 square inches will have an output of 1,000 PSI.

Lightning and Power Surges.

Lightning strikes and power surges plague large industrial scales more than realized. When this happens with electronic load cells installed, then there usually will be some downtime when lightning strikes. Hydrostatic load cells are unaffected by electrical surges, power failures, stray voltages or even lightning strikes. Electronic load cells are highly susceptible to these common industrial occurrences and are often damaged requiring replacement. Outdoor tank scales or truck scales often lose all load cells from a lightning strike, even with surge protectors.

corrosion

Hydrostatic load cells are available in grade 304 and 316 stainless, with improved life and performance over the more common aluminum and carbon steel. Most electronic load cells are made of nickel plated tool steel, or at best 17-4PH grade stainless steel, which is far less corrosion resistant that that of 304/316. Many electronic load cell manufacturers avoid stainless steel completely due to performance deterioration. In environments that are washed down, this can be bad for electronic load cells due to the moisture getting into the wiring and boards on top of potential corrosion from the type of steel used.

durability

Durability is essential to separating the good scales from the bad. A scale that is unable to handle the amount of measurements it receives will eventually cost more money than it earns, this also includes downtime for the repairs.Hydrostatic scales are a lot more durable compared to their electronic counterparts. They are able to last for decades without any sort of parts replacement. Whereas mechanical scales require periodic replacements of pivots and bearings. Electronic load cells will have to be replaced numerous times throughout the life of the scale.In harsh environments the hydrostatic scale will definitely be up to the task. Less moving parts with a design to handle the harshness of the environment places hydrostatic above electronic and analog.

Special materials

Hydrostatic load cells can be manufactured out of many special alloys, with no loss of accuracy. They are available in 304 stainless, 316 stainless, titanium, monel, as well as teflon and hastelloy. Electronic cells require a certain hardness, and therefore can only be made with aluminum, steel, or 174PH stainless, which are less corrosive resistant.

Shock loading

Hydrostatic load cells have a natural inherent quality of shock absorption. Electronic load cells have no inherent energy absorbing qualities. In the event of severe shock loading resulting in load cell damage, the hydrostatic load cell can be easily repaired. Due to the simple design nature of hydrostatic load cells, it is very easy to repair them on site. Electronic load cells have to be rebuilt at a repair shop. They are unable to be repaired on site and almost always require a full replacement.

Calibration

In the unlikely event that a hydrostatic load cell ever needs to be replaced, the scale rarely needs to be recalibrated. Hydrostatic load cells with identical acting areas have matched outputs, whereas electronic load cells have variations in millivolt output, requiring the scale to be recalibrated whenever a load cell is replaced.

Temperature

Hydrostatic load cells are available with a 500 degree operating range, from -50 degrees F to 450 degrees F. Electronics operate at less than half this range. The adhesives used in electronic cells deteriorate in high temperatures and become brittle in cold temperatures, causing total failure or inaccurate readings, frequently resulting in load cell replacement.

high capacity

Hydrostatic load cells have been manufactured with capacities exceeding 1 million lbs. There was actually a 12 million pound load cell that has been operating in a testing machine at the National Institute of Standards and Technology since 1968. In addition, high capacity hydrostatic load cells require a minimum expense in mounting hardware, while the hardware for high capacity electronic load cells can cost more than the cell itself and often must be made of specialty hardened steel.

Installation

Hydrostatic load cells are “dead” until activated with fluid. Therefore, the load cell is almost impossible to damage during installation. While electronic load cells frequently require “dummy” load cells during installation, hydrostatic load cells never do. An electronic load cell is “live” from the time it leaves the factory. It can easily be damaged beyond repair by being dropped, when placed under a tank leg, overloaded, left exposed to weathering, etc. Many are replaced before ever being used.

Cost of ownership

With all these advantages listed, it should be easy to see that scales with hydrostatic load cells have the lowest cost of ownership of any scale on the market today. The fact that hydrostatic load cells are a lot less to maintain, it dramatically reduces your overall cost and keeps you from losing money due to downtime for repairs. Any product that can save you money while being of superior quality is always a plus.

closing words
